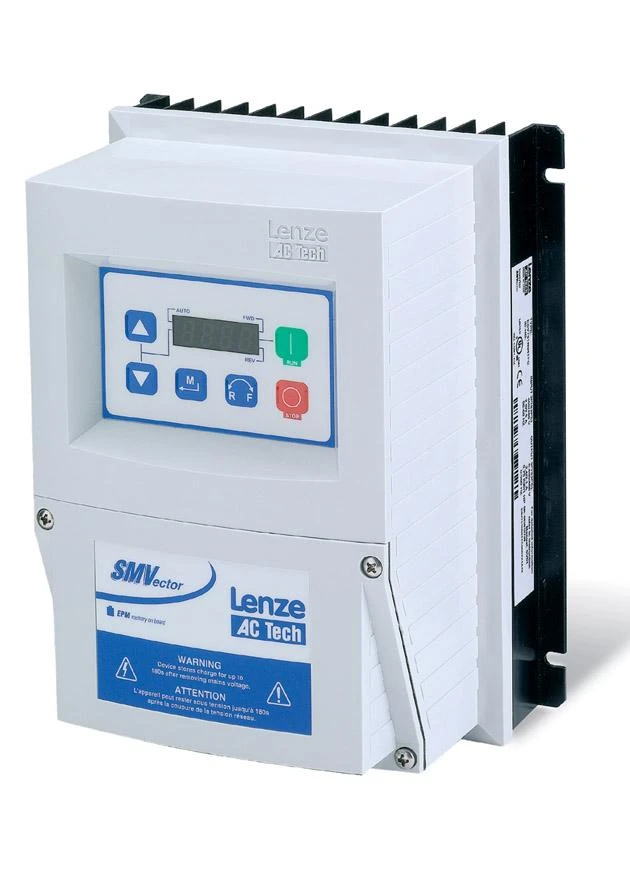

Lenze ESV183N04TXD SMV Drive, 25HP, 480V, 3PH, NEMA 4X, AC Tech Series

Description

The Lenze ESV183N04TXD is a rugged SMVector Series AC drive designed for industrial motor control, machinery and automation applications.

Rated at 25 HP (18.5 kW), this variable frequency drive operates from a 400/480V AC, 3-phase supply and provides reliable variable-speed control for three-phase AC motors.

Its NEMA 4X / IP65 indoor enclosure provides increased protection for demanding industrial environments and allows wall-mounted installation without requiring a conventional control cabinet.

KEY FEATURES

Manufacturer: Lenze / AC Tech
Part Number: ESV183N04TXD
Series: SMVector / SMV
Product Type: AC Drive / Variable Frequency Drive (VFD)
Rated Power: 25 HP / 18.5 kW
Input Voltage: 400/480 VAC
Input Phase: 3-Phase
Output Phase: 3-Phase
Output Current: 39A @ 400V / 34A @ 480V
Output Frequency: 0–500 Hz
Enclosure: NEMA 4X / IP65
Enclosure Application: Indoor
Frame Size: W1
Mounting: Wall Mount
Integrated Keypad: Yes
EPM Memory Technology: Yes

APPLICATIONS

Ideal for industrial machinery, conveyors, material handling systems, pumps, fans, packaging equipment, processing machinery and general-purpose variable-speed motor control.

The rugged NEMA 4X / IP65 enclosure makes this drive particularly suitable for industrial environments where additional protection against dust, moisture and contaminants is required.
