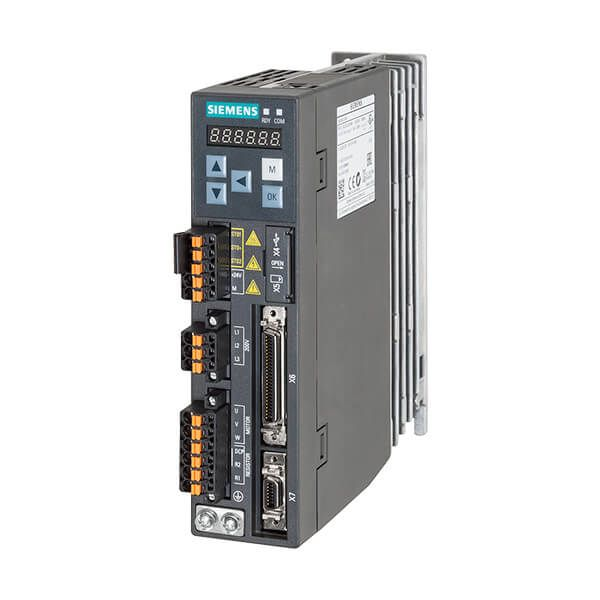

Siemens 6SL3210-5FB10-2UF2 SINAMICS V90 PROFINET Servo Drive 0.2kW 200-240V 1/3PH

Description

The Siemens 6SL3210-5FB10-2UF2 SINAMICS V90 is a compact industrial servo drive designed for precise positioning, speed control and dynamic motion-control applications.

This SINAMICS V90 drive supports a 0.2 kW (200 W) servo motor and operates from a 200–240 VAC single-phase or three-phase power supply. With a rated output current of 1.4 A and maximum output current of 4.2 A, it provides the dynamic performance required for automated machinery and positioning systems.

Integrated PROFINET communication enables high-speed connectivity with Siemens SIMATIC PLCs and other compatible industrial automation systems. The V90 PROFINET platform supports real-time motion applications and is designed to work with compatible Siemens SIMOTICS S-1FL6 servo motors.

Key Features

• Manufacturer: Siemens
• Series: SINAMICS V90
• Part Number: 6SL3210-5FB10-2UF2
• Product Type: Servo Drive / Servo Converter
• Rated Motor Power: 0.2 kW / 200 W
• Input Voltage: 200–240 VAC
• Input Phase: 1-Phase or 3-Phase
• Input Frequency: 45–66 Hz
• Rated Input Current: 3.0 A (1PH) / 1.8 A (3PH)
• Rated Output Current: 1.4 A
• Maximum Output Current: 4.2 A
• Output Frequency: 0–330 Hz
• Communication: PROFINET
• Protection Rating: IP20
• Frame Size: FSA / Size A
• Dimensions: 45 × 170 × 170 mm (W × H × D)
• Compatible with SIMOTICS S-1FL6 servo motors
• Designed for precision motion and positioning applications

The 6SL3210-5FB10-2UF2 is well suited for packaging machinery, electronic assembly equipment, pick-and-place systems, conveyors, positioning equipment, material handling machinery and other automated systems requiring accurate servo motor control.
