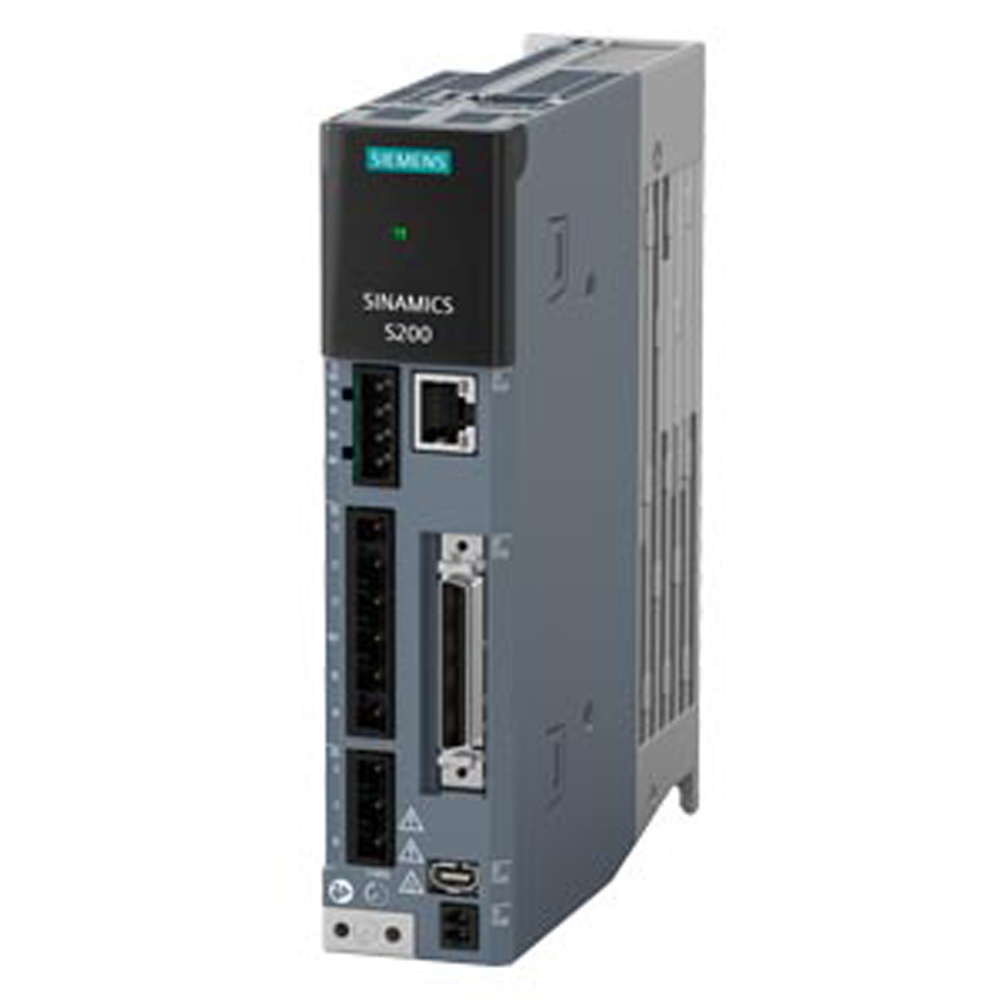

Siemens 6SL55101BE170AA0 SINAMICS S200 PTI. 3 AC 400V 7kW

Description

The Siemens 6SL5510-1BE17-0AA0 SINAMICS S200 PTI is a high-performance industrial servo drive designed for precise positioning, speed control and dynamic motion-control applications.

Operating from a 380–480 VAC three-phase power supply, this SINAMICS S200 servo converter supports motors up to 7.0 kW and provides a rated output current of 13.2 A, with a maximum output current of 37.4 A.

This version features Pulse Train Input (PTI) control, allowing integration with compatible PLCs, motion controllers and automation systems that use pulse-based positioning commands. Its high power capacity makes it suitable for demanding machinery requiring accurate, repeatable and responsive servo motion.

The drive features an FSD frame, integrated fan cooling and IP20 / UL Open Type construction for installation inside industrial control cabinets.

Key Features

• Manufacturer: Siemens
• Series: SINAMICS S200
• Part Number: 6SL5510-1BE17-0AA0
• Product Type: Servo Drive / Servo Converter
• Control Interface: Pulse Train Input (PTI)
• Rated Motor Power: 7.0 kW
• Input Voltage: 380–480 VAC
• Input Phase: 3-Phase / 3 AC
• Input Frequency: 45–66 Hz
• Rated Input Current: 14.0 A
• Rated Output Current: 13.2 A
• Maximum Output Current: 37.4 A
• Output Frequency: 0–550 Hz
• Pulse Frequency: 8 kHz
• Frame Size: FSD
• Protection Rating: IP20 / UL Open Type
• Cooling: Integrated Fan
• Dimensions: 95 × 260 × 230 mm (W × H × D)
• Net Weight: Approx. 4.0 kg
• Designed for precision positioning and servo motion control

The 6SL5510-1BE17-0AA0 is suitable for packaging machinery, assembly systems, material handling equipment, positioning systems, conveyors, machine tools and other automated machinery requiring high-power precision servo control.
