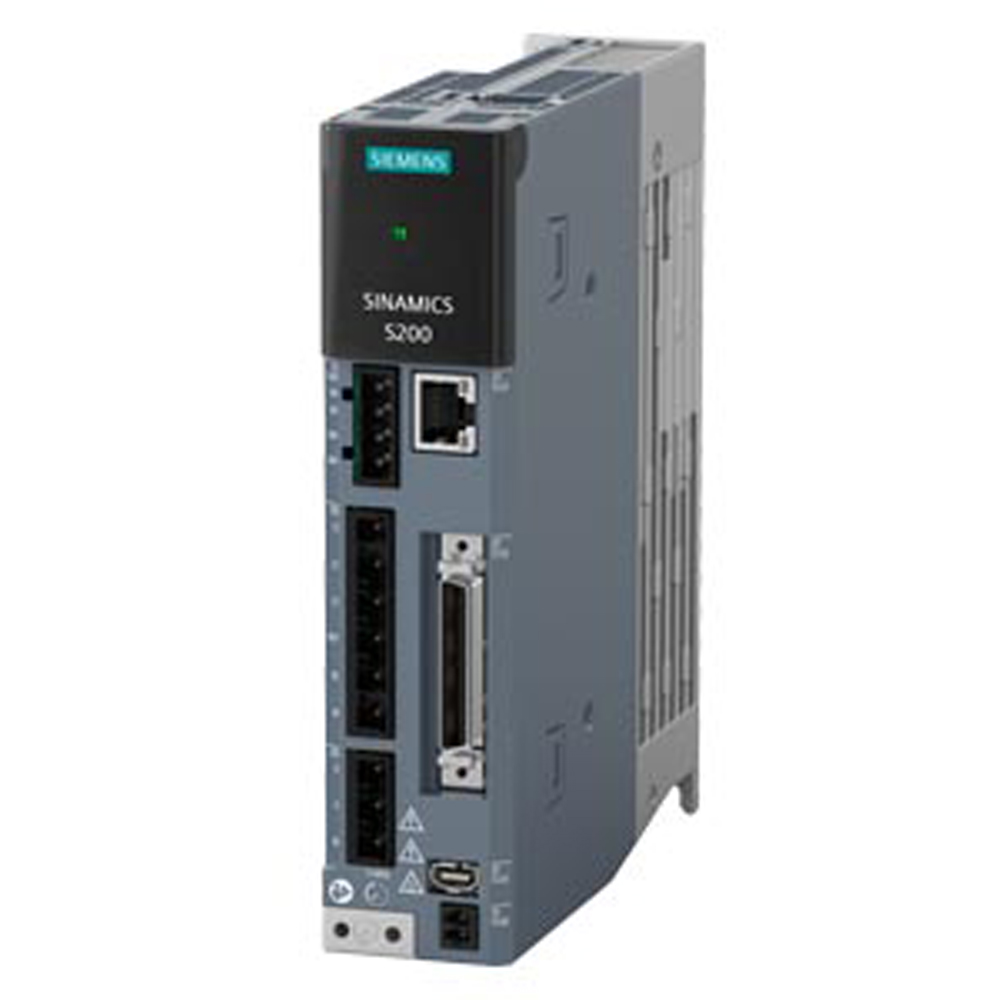

Siemens 6SL55101BE150AA0 SINAMICS S200 PTI. 3 AC 400V 5kW

Description

The Siemens 6SL5510-1BE15-0AA0 SINAMICS S200 PTI is a high-performance industrial servo drive designed for precise speed, position and motion control in demanding machine automation applications.

Operating from a 380–480 VAC three-phase power supply, this SINAMICS S200 servo drive supports motors up to 5.0 kW and provides a rated output current of 12.6 A, with a maximum output current of 38.8 A.

This version features Pulse Train Input (PTI) control, making it suitable for integration with motion controllers and PLC systems that use pulse-based positioning commands. The S200 platform provides fast dynamic response and accurate servo motor control for applications requiring precise and repeatable motion.

Key Features

• Manufacturer: Siemens
• Series: SINAMICS S200
• Part Number: 6SL5510-1BE15-0AA0
• Product Type: Servo Drive / Servo Converter
• Control Interface: Pulse Train Input (PTI)
• Rated Motor Power: 5.0 kW
• Input Voltage: 380–480 VAC
• Input Phase: 3-Phase / 3 AC
• Input Frequency: 45–66 Hz
• Rated Input Current: 13.0 A
• Rated Output Current: 12.6 A
• Maximum Output Current: 38.8 A
• Output Frequency: 0–550 Hz
• Pulse Frequency: 8 kHz
• Frame Size: FSD
• Protection Rating: IP20
• Cooling: Integrated Fan Cooling
• Dimensions: Approx. 95 × 260 × 230 mm (W × H × D)
• Net Weight: Approx. 4.52 kg
• Designed for use with compatible Siemens SIMOTICS S-1FL2 servo motors

The 6SL5510-1BE15-0AA0 is suitable for packaging machinery, material handling systems, positioning equipment, assembly machinery, machine tools, conveyors and other industrial applications requiring precise high-power servo motion control.
